Code 602

Actionpanel

Full Color

Our philosophy

Excellence at affordable prices.

Our goal is to manufacture professional products with excellent features alongside affordable prices for everyone. This is why we focus on the design and development of our products, keeping the needs of professionals and enthusiasts, but also their pockets, in mind! When you buy a Lupo product, you can be sure it will have all the features you expect from a high-end product and a performance level second to none. With the new Actionpanel range, we want to offer you all of the following: a powerful, compact, easy to use and high-performing solution, all at an unbeatable price.

RGBWW

With this mode you
can control red, green,
blue and white independently.

HSI

HSI mode allows you to have full control over hue, saturation and intensity of all colors available.

Presets
and Special Effects.

The Actionpanel Full Color features an extensive collection of preset filters and special effects that you can quickly use on the set.

CCT Mode.

White

warm and cool

from 2800 K
to 10000 K

with the possibility to adjust green and magenta.

Product specifications

Dimensions:

205 x 205 x 105 mm

Weight:

2 kg (4.4 lb)

Voltage AC:

90 V – 240 V

Watt consumption:

60 W

Battery:

14.8 V, 95 Wh, standard XLR 4 pin

Frequency (input):

50/60 Hz

Compliance:

CE

Intensity light dimmer

0

100 %

Colour Temperature

2700 K

10000 K

Colour Rendering Index

CRI

0

100

96
TLCI

0

100

98
Dimming curves modes
LINEAR
EXPONENTIAL
LOGARITHMIC
CCT/HSI/RGBW
1 - 19
Effects
8/16 bit - 1/512 Channels

Do your research

5000 Lux at a 1 m!
Incredible light output in ultra-compact dimensions.

Up to 5000 Lux at a 1 m, can you believe it? If you compare these values with those of other RGBWW LED panels that cost ten times more, you will see that they are almost equivalent. We wanted to create a Full Color LED panel that is versatile, compact, ultra-strong, powerful, but above all, economic, so everyone could use state-of-the-art RGBWW LED technology. We managed to do so by studying the best optic and the most efficient dissipation for latest generation LEDs. The Actionpanel Full Color is unrivalled and this is why we suggest you compare the technical features with the best you can currently find on the market.

The Action factor

Let your creativity run wild.

The Actionpanel has been designed to be a hyper-technological and portable product, so you can use it wherever you may be. Weighing just 2 kg, with an ultra-resistant reinforced technopolymer shell, you no longer need to worry about carrying heavy and complicated to use solutions or with separate electronic parts on set. In fact, everything is integrated in the Actionpanel, just as in all Lupo LED products. Super powerful flexibility, so you can focus on the fun part of your job: creating!

Compact and tough

Mains or battery operated.
DMX integrated.

We are always working to develop new products and to improve existing ones and we work hard to create technology that lasts over time and makes you happy with your investment. This is the reason we wanted to give the new Actionpanel range a super solid and resistant structure, while keeping to our lightness and portability philosophy. All the Actionpanel range models are mains or battery operated (standard 14.8 V and 95 Wh batteries), and work through DMX control. Firmware can be upgraded through the USB port.

The ease of use that you have always wanted.

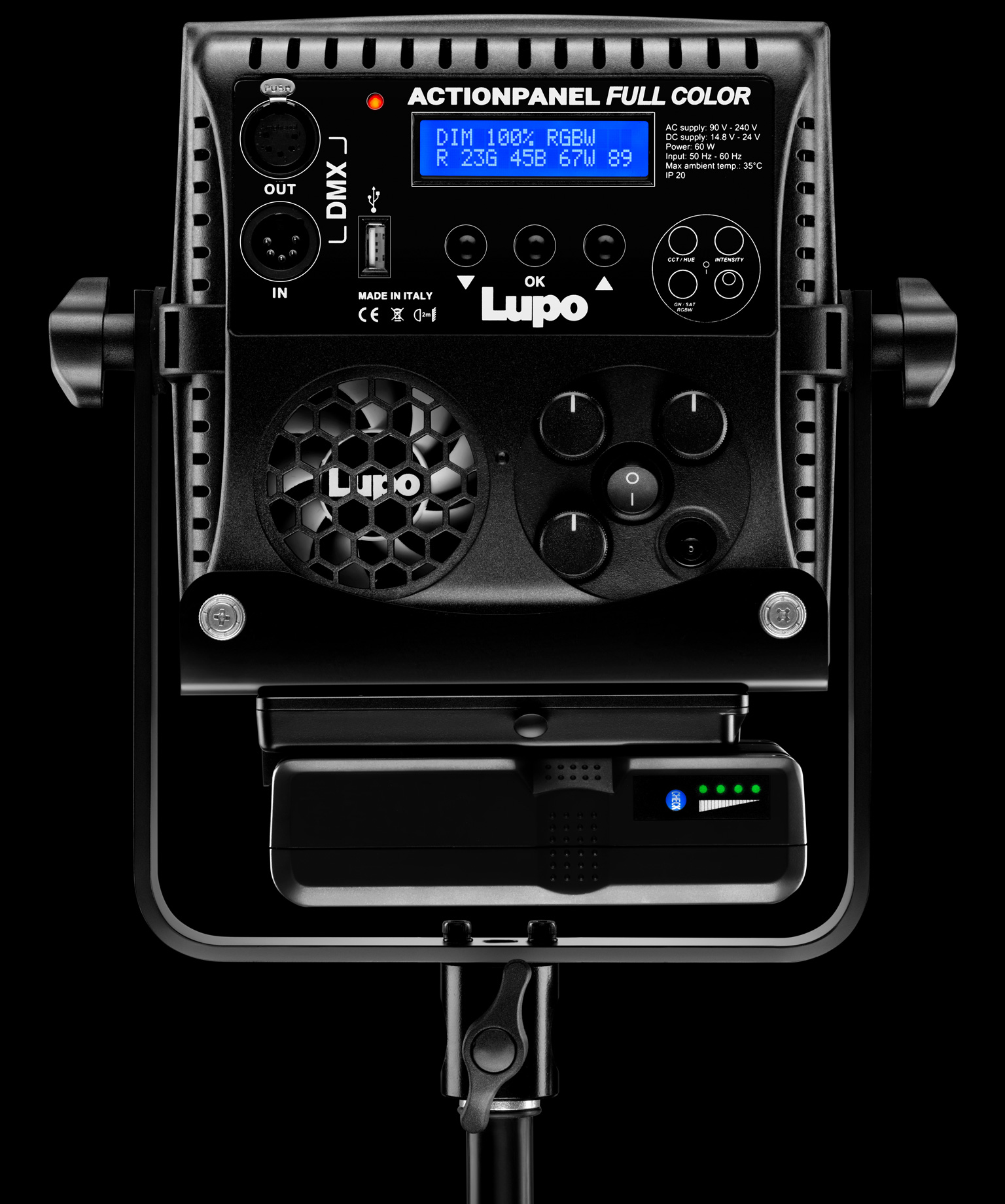

The digital display on the back of the Actionpanel Full Color allows you to clearly and easily visualize the light intensity you decide to set, the chosen color temperature and the DMX channels. All functions and settings are designed to make life simpler for professionals.

Complete range for every need.

All Lupo products are compatible with a wide range of accessories: backpacks, batteries, v-locks, battery chargers, softboxes, carrying cases, tripods and clamps. By clicking on the link below you can see the full range of accessories for Actionpanel Full Color.
