Code 400

Superpanel

Dual Color 30 Hard

Welcome Challenge!

Still the most powerful 1x1 LED panel. Now 36,000 Lux at 1 m.

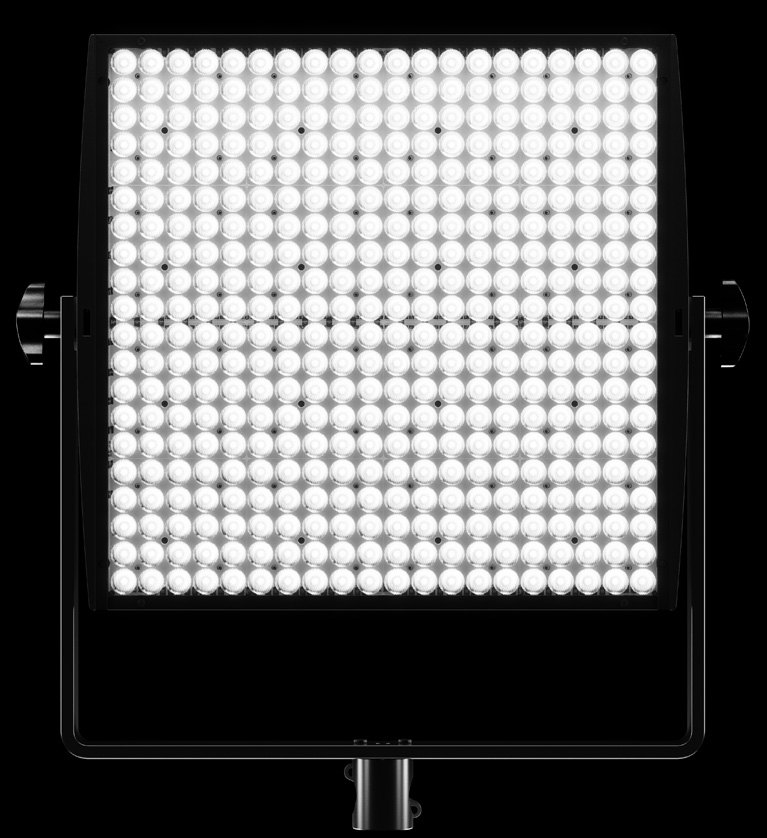

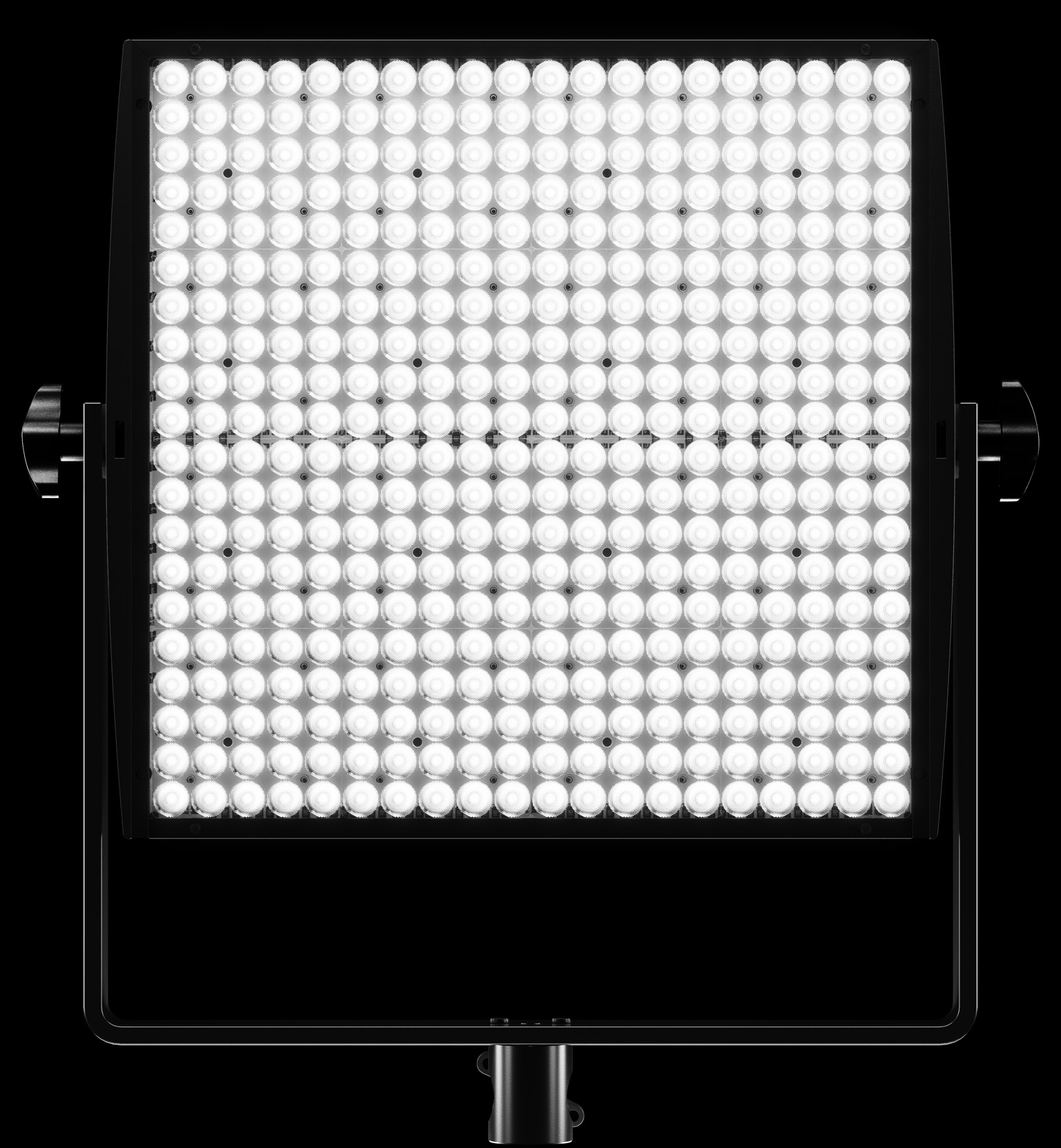

The Superpanels are the latest generation LED panels designed for photography and video shooting. The Superpanels use 400 high-quality LEDs, with high luminous efficiency, to ensure an accurate colour temperature and a high CRI (Color Rendering Index) and TLCI (Television Lighting Consistency Index). They emit an exceptionally powerful, uniform and enveloping light. Extremely lightweight, compact and handy, the Superpanels are ideal for use inside and outside the studio and they can be powered by the mains or on V-mount batteries. With 30,000 Lux at 1 m you will have all the light power you need for your footage. All Lupo Superpanels can be used with the diffuser or the dedicated softbox for an even softer light emission.

Product specifications

Dimensions (mm):

335 x 320 x 100 mm

Dimensions (inch):

13.18 x 12.5 x 4 inch

Weight (g):

3,7 kg

Weight (lb):

8.1571 lb

Voltage AC:

90 V – 240 V

Watt consumption:

200 W

Battery:

14.8 V, standard XLR 4 pin

Frequency (input):

50/60 Hz

Compliance:

CE

Remote control:

Bluetooth Long Range / DMX / RDM

Intensity light dimmer

0

100 %

Colour Temperature

6500 K

2800 K

Colour Rendering Index

CRI

0

100

97
TLCI

0

100

98
Dimming curves modes
LINEAR
EXPONENTIAL
LOGARITHMIC
CCT
1 - 3
Smooth dimming
8/16 bit - 1/512 Channels

Flicker free

Perfect for video shootings.
In studio or on location.

All models in the Superpanel range are designed to make life easier for professionals in the photographic and video industry, and silent operation is one of the key features of all of our lighting products. The high-frequency electronics guarantee a truly flicker-free operation even for high-speed video shooting. Put the Superpanel Soft to the test. You will be more than satisfied with it.

Robust and reliable

Body in reinforced technopolymer for a more practical use.

The Superpanel Dual Color 30, like all LED panels, LED Fresnels and Lupo accessories, was developed to provide professional performances and is built with high quality components. Lupo products are designed to be reliable over time. The eye-catching design and the functionality of the Superpanel Dual Color 30 are the highlights of this compact, versatile and incredibly powerful new generation LED panel. LEDs were chosen for their high colour rendering (CRI > 96, TICI > 98) and for their colour temperature accuracy. By choosing a model from the Superpanel range you will be sure you are relying on a high quality and professional product.

Built-in DMX

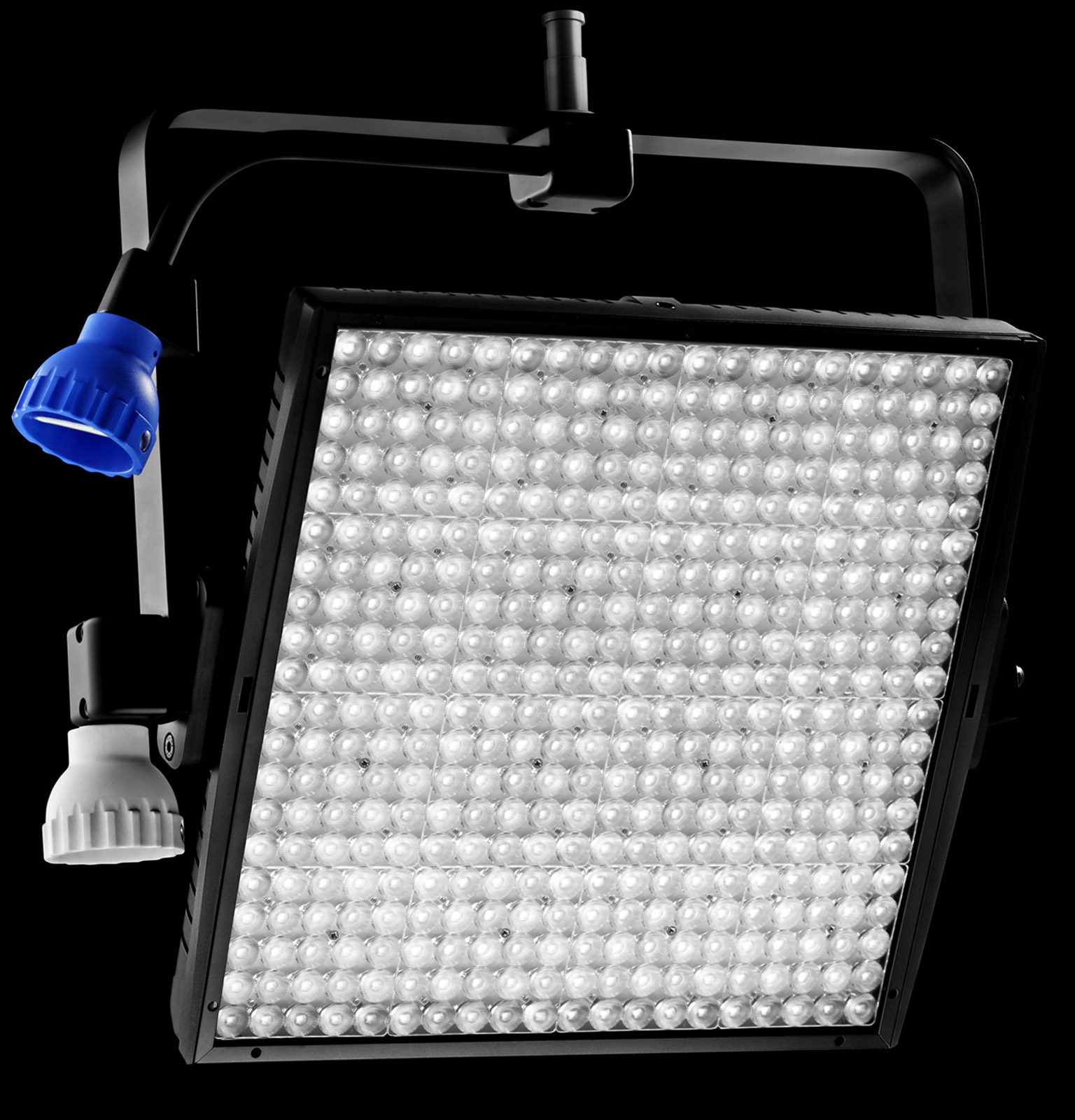

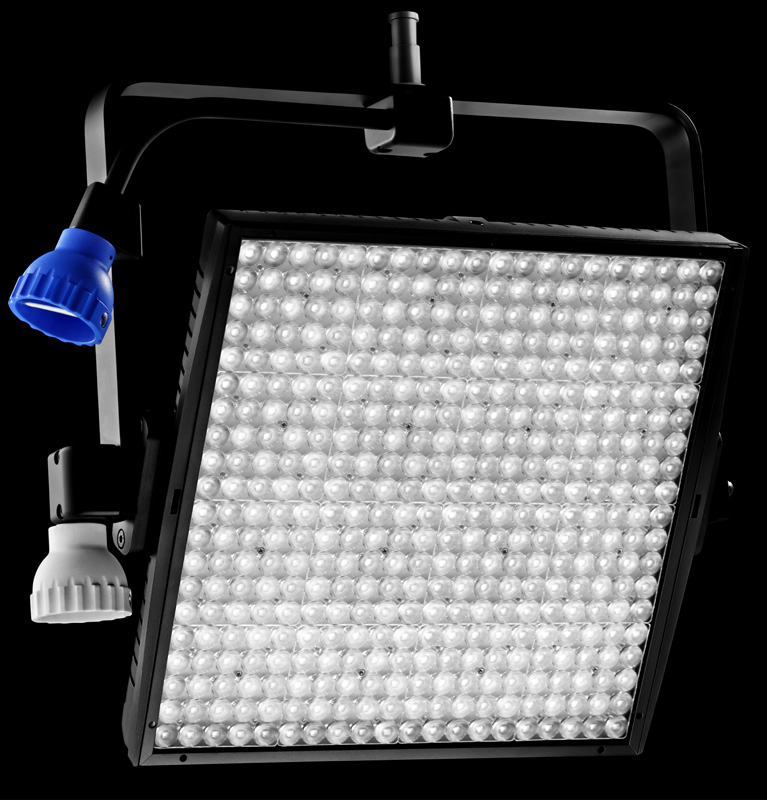

Available in the version with pole operated yoke.

The Superpanel Dual Color 30 is the LED panel that will make your professional shooting much easier. The technopolymer body, reinforced with carbon fibre, makes it robust and suitable for an intensive use. All Lupo lighting products are available with a pole operated yoke for use in television studios of all sizes. The operation of the Superpanel pole operated yoke is simple, effective and reliable over time. All models with pole operated yokes are supplied with a 28 mm spigot.

Variable colour temperature from 3200 K to 5600 K.

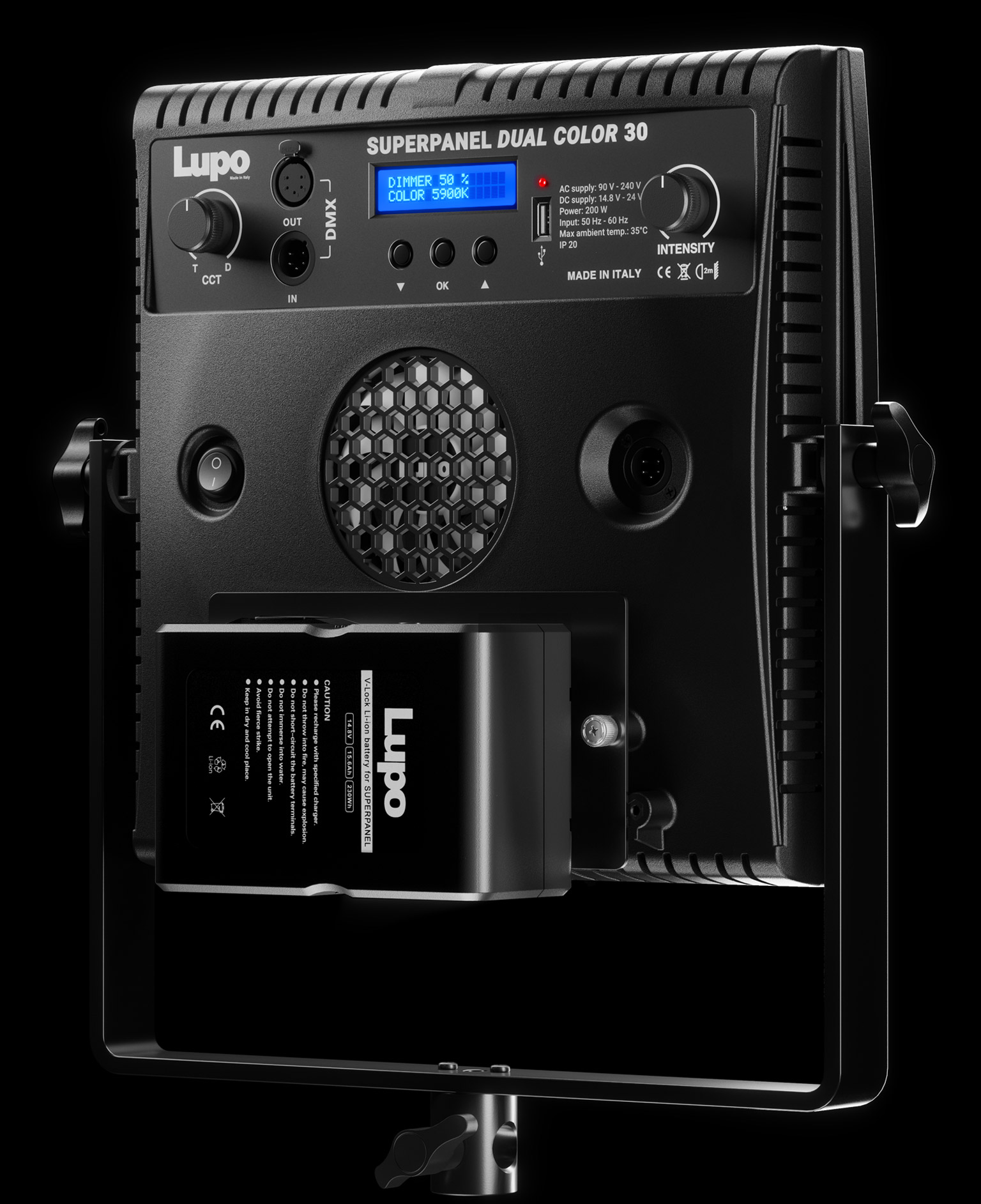

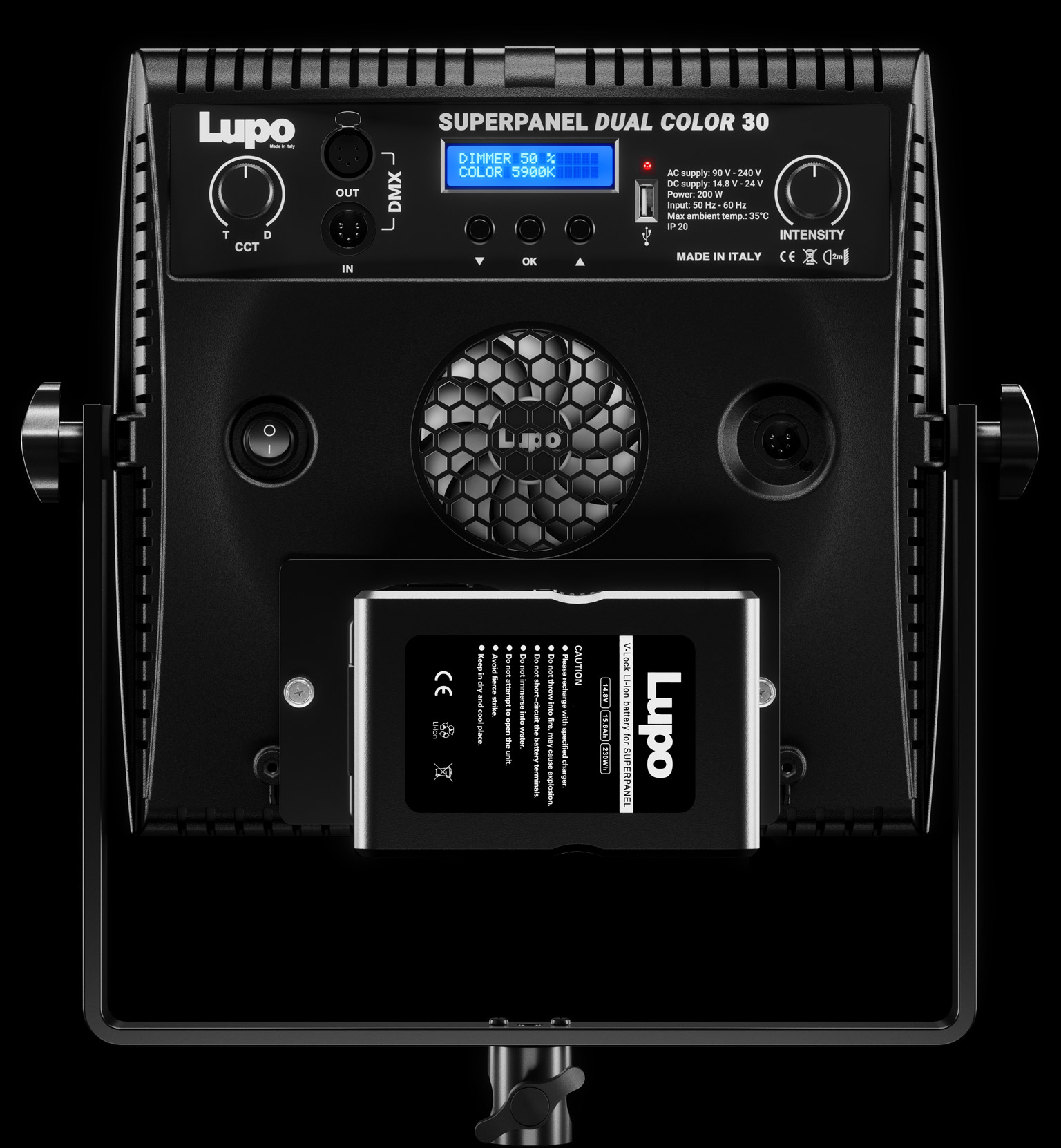

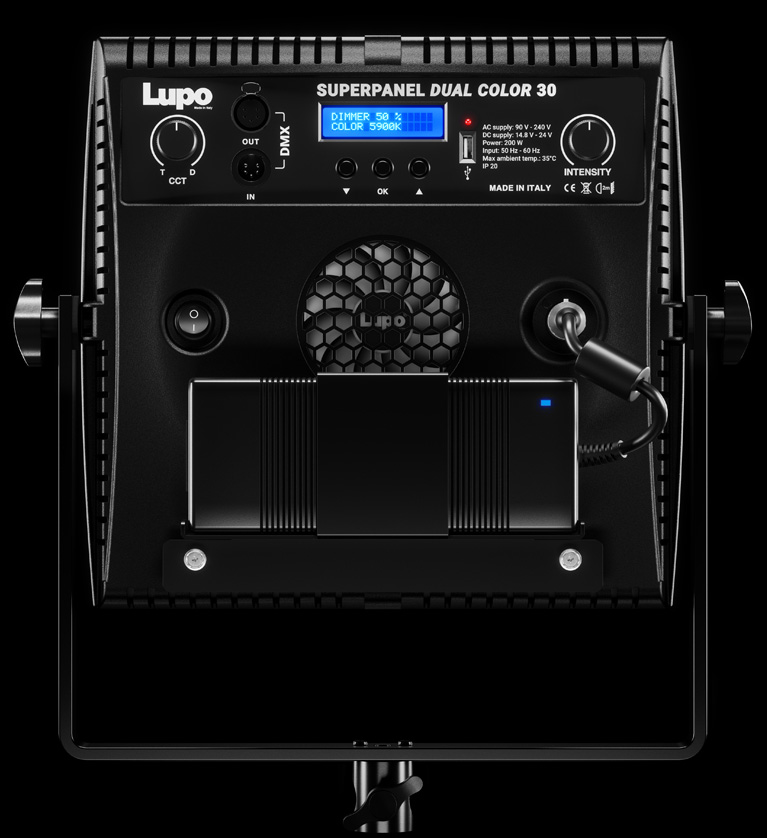

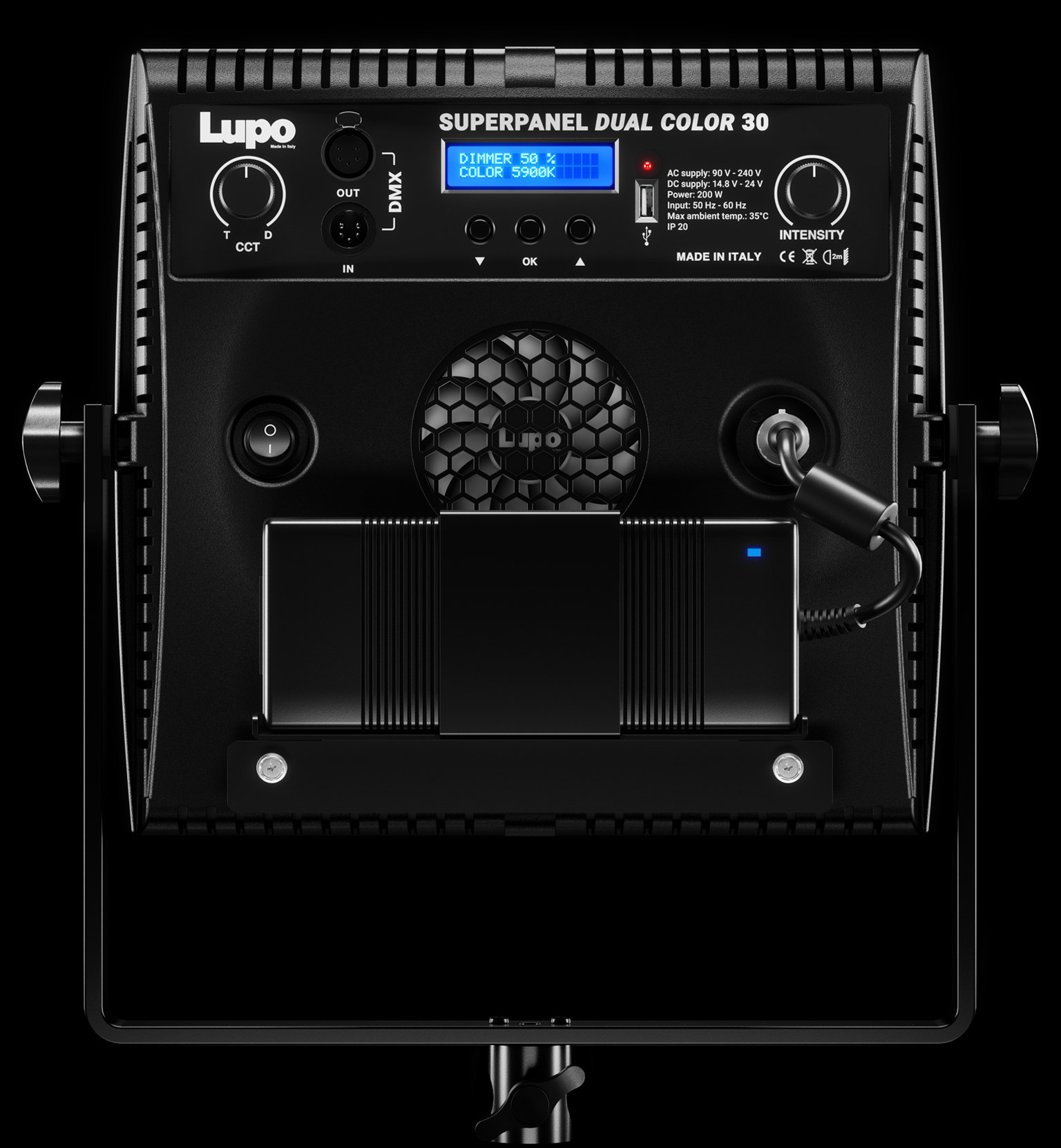

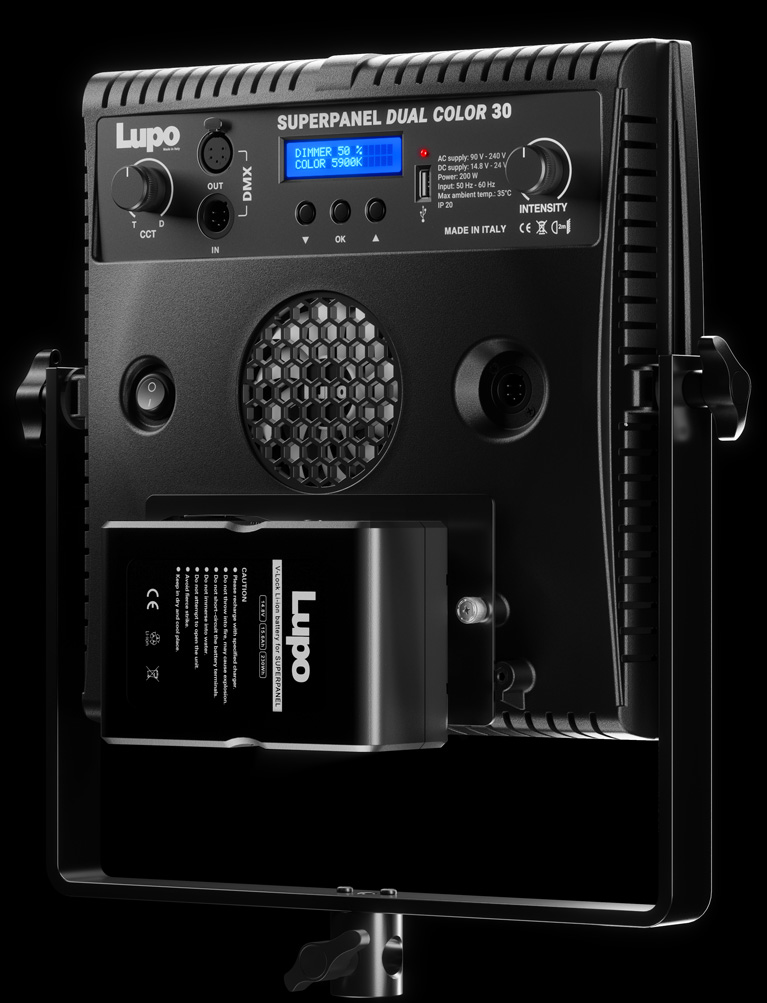

Very lightweight and compact (just 3.7 kg), easily transportable with their dedicated padded bags, they can be used in every shooting situation thanks to their operation with batteries or on the mains (universal 90 V — 240 V AC; 14,8 V — 24 V DC). The dedicated long life battery allows for a full power operation of about 1.7 hours. The weight of the battery is only 800 g and can be carried (along with chargers and accessories) in the same practical bag used for the Superpanel. The battery power connection is via a 4-pole standard XLR connector at the back of the panel.

Complete range for every need.

All Lupo products are compatible with a wide range of accessories: batteries, v-locks, battery chargers, softboxes, carrying cases, tripods and clamps. By clicking on the link below you can see the full range of accessories for Superpanel Dual Color 30.
