Code 804 PRO

UltrapanelPRO

Dual Color Hard 60

The brightest 2x1 LED panel!

The brightest 2x1 LED panel on the market. 140,000 Lux at 1 m.

The new UltrapanelPRO Dual Color Hard 60 is the ultimate 2x1 LED panel with its 140,000 Lux at 1 m. It is a deluxe version of the SuperpanelPRO Dual Color Hard 60 with all the technical and optical features of the latter but with double the light output. Top CRI and TLCI, AC/DC operation with practical and economical 14 V and 160 Wh batteries, DMX and RDM control. The UltrapanelPRO is a surprisingly practical light with ultra-professional performance, suitable for film sets and TV studios that need high performance lighting. The incredible light output has been achieved by using the latest generation of LEDs and the light beam angle is the same as the SuperpanelPRO Hard models (40°).

Product specifications

Dimensions (mm):

691 x 465 x 121 mm

Dimensions (inch):

27.2 x 18.3 x 4.21 inch

Weight (g):

9 Kg

Weight (lb):

19.8 lb

Voltage AC:

90 V – 240 V

Watt consumption:

440 W

Battery:

14.8 V, 160 Wh, standard XLR 4 pin

Frequency (input):

50/60 Hz

Compliance:

CE

Remote control:

DMX / RDM

Intensity light dimmer

0

100 %

Colour Temperature

6500 K

2800 K

Colour Rendering Index

CRI

0

100

95
TLCI

0

100

96
Dimming curves modes
LINEAR
EXPONENTIAL
LOGARITHMIC
CCT
1 - 3
Smooth dimming
8/16 bit - 1/512 Channels

Tuneable white

Perfect for video shootings.
In studio or on location.

The UltrapanelPRO are the latest generation LED panels designed for broadcast, film and video shooting. The UltrapanelPRO use 800 high-quality LEDs, with high luminous efficiency, to ensure an accurate colour temperature and a high CRI (Color Rendering Index) and TLCI (Television Lighting Consistency Index). They emit an exceptionally powerful, uniform and enveloping light. Extremely lightweight, compact and handy, the UltrapanelPRO are ideal for use inside and outside the studio and they can be powered by the mains or on V-mount batteries. All Lupo UltrapanelPRO can be used with egg crates and the dedicated softbox for an even softer light emission.

Built-in DMX/RDM

Body in reinforced technopolymer for a more practical use.

The UltrapanelPRO Dual Color 60, like all LED panels, LED Fresnels and Lupo accessories, was developed to provide professional performances and is built with high quality components. Lupo products are designed to be reliable over time. The eye-catching design and the functionality of the UltrapanelPRO 60 are the highlights of this compact, versatile and incredibly powerful new generation LED panel. LEDs were chosen for their high colour rendering (CRI > 95, TLCI > 96) and for their colour temperature accuracy. Very lightweight and compact (just 9 kg), easily transportable with their dedicated padded bags, they can be used in every shooting situation thanks to their operation with batteries or on the mains (universal 90 V — 240 V AC; 14,8 V — 24 V DC).

Mains or battery operation

Available in the version with pole operated yoke.

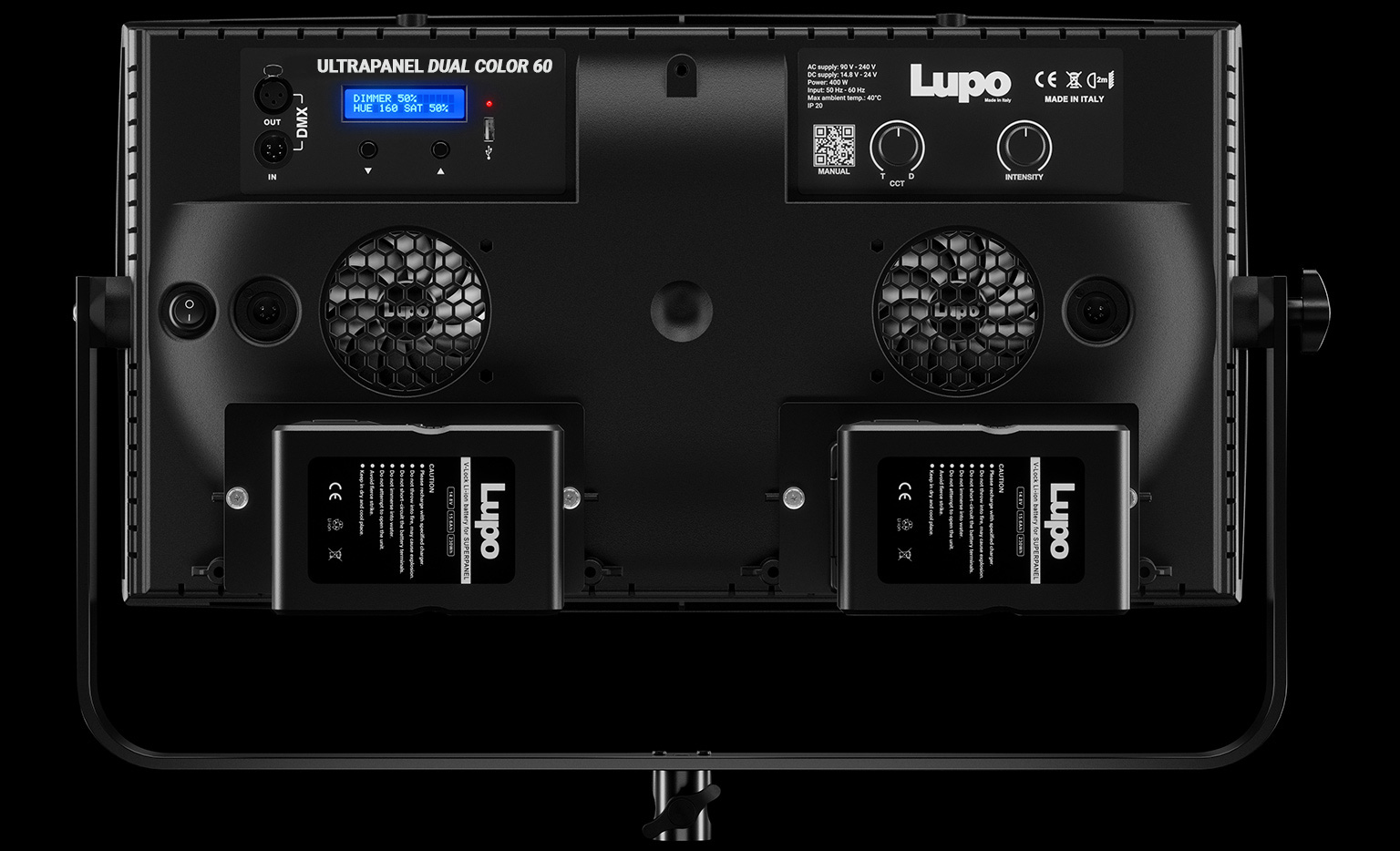

The two dedicated long life batteries allow for a full power operation of about 1.7 hours. The weight of a battery is only 800 g and can be carried (along with chargers and accessories) in the same practical bag used for the UltrapanelPRO 60. The battery power connection is via a 4-pole standard XLR connector at the back of the panel. By choosing a model from the UltrapanelPRO 60 range you will be sure you are relying on a high quality and professional product.

Complete range for every need.

All Lupo products are compatible with a wide range of accessories: batteries, v-locks, battery chargers, softboxes, carrying cases, tripods and clamps. By clicking on the link below you can see the full range of accessories for UltrapanelPRO Dual Color Hard 60.

Find out all accessories
